SVS-VISTEK SVCam-ECO Gigabit Ethernet CCD CAMERA for Machine Vision

SVCam-ECO cameras based on modern Gigabit Ethernet industry standard

Introduction:

• Resolutions from VGA up to 5 mega pixels
• Ultracompact casing
• Extremely low weight
• 14 Bit ADC
• Unbeatable price-performance ratio
• Monochrome and color versions
• SVCapture software including a SDK supports Windows XP including 64 Bit operating system. A LINUX Driver is also available.

9 resolution options:

• eco424     640*480 pixel
• eco415     782*582 pixel
• eco428     768*494 pixel
• eco204     1024*768 pixel
• eco445     1280*960 pixel
• eco267     1360*1024 pixel (1/2")
• eco285     1360*1024 pixel (2/3")
• eco274     1600*1200 pixel
• eco655     2448*2050 pixel

If you are interesting this product, please contact us: nvp.tech@msa.hinet.net
Or you can visit our website: http://www.nvp.com.tw/

High Resolution Telecentric Lens For Machine Vision

The High Resolution Series used for mega pixel camera or more pixels.

Introduction:
high resolution & high contrast image
designed for mega pixels and over
High performance and high quality image
support 2/3" CCD SENSOR
Very low distortion design

If you are interesting this product, please contact us: nvp.tech@msa.hinet.net
Or you can visit our website: http://www.nvp.com.tw/

Machine Vision Mega Pixel Lenses

For 1.3 Mega Pixel CAMERA High Resolution Lenses

Introduction:

1. Compact design
2. Low distrotion
3. Robust metal body with locking knob for iris and focus
4. Clear and accurate iris and focus scale markings
5. Standard filter thread design
6. C-mount
7. Low Cost

If you are interesting this product, please contact us: nvp.tech@msa.hinet.net
Or you can visit our website: http://www.nvp.com.tw/

Image Processing unit for Line Scan Camera

MEGA40 can operate dual line scan camera system

and realize high accuracy measuring

and position control low cost



EASY PARAMETER SETTING

Setting is possible with Touch panel LCD.

This controller is interactive and can easily set you.

The touch panel of the controller can do disassembly.

 HIGH SPEED / GRAY PROCESSING

This controller can connect Line scan camera of 20MHz

This controller enables a gray processing measurement

EXTERNAL I/O EQUIPAGE

Parallel 32bit, RS232C, Analog Output

SPECIFICATION

Digital Input	32bit Photon Isolation
Digital Output	32bit Photon Isolation
Serial I/O	RS232C
AD Output	Voltage 12bit 3ch
Display	80 Characters LCD
Human-machine interface	Touch Panel 5.7inch
CC-LINK interface	Slave (option)

Camera I/O

No, of Camera	Max 2
The video voltage	0~5V or 0~2.5V
The number of the camera pixels	8000 pixel
Video frequency	20MHz
Video conversion 1	Binary / data 2ch
Video conversion 2	A/D (1~255) 2ch
Binaly Point Number	Max 2048 2ch

If you are interesting this product, please contact us: nvp.tech@msa.hinet.net
Or you can visit our website: http://www.nvp.com.tw/

FOR IPHONE ZOOM LENS

Long Focal Lens For Fixed Focus IPhone

ONLY USD$39 (FOB TAIWAN)

8X Optical Magnification

8X F1.1

INCLUDING:

1. Long Focal Lens

2. Universal Holder

3. Mini Tripod

4. Cleaning cloth

5. Case

Minimum Focus Distance: 3M

Magnification:8X

Field View:246M

Angle Of View:7

Size: 30mm* 70mm

If you are interesting this product, please contact us: nvp.tech@msa.hinet.net

Machine Vision CAMERALINK Full Configuration Frame Grabber Card

Introduction
The CML64 is a PCI Express x4 compliant Camera Link frame grabber that support one channel base/mediun/full configuration, multi-tap area, and line scan color and monochrome Camera Link cameras.

The CML64 series utilizes an FPGA design for greater image acquisition flexibility, higher performance, and improved pre-processing functionality.

The CML64 provides a 128 MB frame buffer to buffer and rearrange pixel data from the camera, before passing it to the PCI Express bus DMA, a feature ideal for industrial machine vision applications, such as high speed inspection and high resolution acquisition.

Scanning modes supported by the CML64 include using a linescan camera in the following modes:
a. Page trigger - triggered events trigger the acquisition of a given number of lines (an area acquisition system)
b. Line trigger - the system continuously acquires and transfers lines from the camera based on the line trigger signal (no lines are skipped)
c. Free-run - image acquisition is controlled by software, without any trigger input

Features
1. PCI Express x4 compliant
2. Supports one channel Camera Link in base/medium/full configuration
3. High-speed image transfer rates up to 680 MB/Sec
4. Acquisition pixel clock rates up to 85 MHz
5. 128 MB DDR SDRAM on-board memory
6. 2 TTL I/O, differential/TTL trigger input
7. Serial communication via Camera Link

Software Support
1. Available for Windows Visita(64/32-bit)/XP
2. Recommended programming environments: C#/.NET/VC++ 6.0/VB 6.0/BCB6.0

If you are interesting this product, please contact us: nvp.tech@msa.hinet.net
Or you can visit our website: http://www.nvp.com.tw/

Machine Vision CAMERALINK Base Configuration Frame Grabber Card

Overview
CPL64 is a PoCL (Power over Camera Link) frame grabber that is based on the PCI Express x4 interface, and supports two-channel Camera Link "base" configuration, multi-tap area and line scan cameras. The CPL64 frame grabber strikes a perfect balance between performance and cost. It is capable of simultaneously image acquisition from two completely independent Camera Link base configuration cameras, and support image transfers rates up to 512MB/s




Features
1. PCI Express x4 compliant
2. Supports 2-CH Camera Link Base configuration
3. Acquisition pixel clock rates up to 85MHz
4. PoCL (Power over Camera Link) safe power compliant with auto detection
5. 128MB of 200 MHz DDR SDRAM for acquisition
6. 4 TTL Digital Input/Output, and 2 trigger Input
7. Support 64-bit memory addressing
8. Two serial communication ports
9. CamCreator assists developers in quickly evaluating initial tests and functions.

If you are interesting this product, please contact us: nvp.tech@msa.hinet.net

Or you can visit our website: http://www.nvp.com.tw/

ITS CAMERA (Intelligent Transportation System Camera)

Support WIN 7
High perpormance ITS GIGE CAMERA

WITH LENS AUTO IRIS CONTROL DESIGN









This series of cameras is compliant with both Gigabit Ethernet and with the GigE Vision standard.
The new GigE Vision camera not only supports the traditional Nachine Vision applications; but it also suports interligent traffic systems, medical imaging, high-tech security and more.

Our GigE Series currently consists of 16 Sony Sensors providing a wide range of GigE Vision cameras, and with still more to come. We believes that GigE can provide both flexibility and cost effective solutions for your applications.

If you are interesting this product, please contact us: nvp.tech@msa.hinet.net

Or you can visit our website: http://www.nvp.com.tw/

HIGH PERFORMANCE IP CAMERA

Introduction
1. High Quality Image
2. USE Progressive Scan CCD & Progressive Scan CMOS SENSOR
3. Support MJPEC & H.264 format
4. Support Lens Auto Iris Control
5. 9 Models of Camera, from VGA to 5MP
6. Local Storage: SD,SDHC

7. Video Streaming: Simultaneous MJPEG H.264 Controllable frame rate and Bandwidth / ROI streaming
8. Intelligent Video: Digital Motion Detection, Active tempering alarm, Audio Dection
9. Pan, Tilt, Zoom: Digital PTZ / Preset position and guard tour
10. Audio support

11. Audio Compression: Composite video output
12. Video In/Out: 1 in / 1 out
13. Alarm In/Out(trigger): Alarm input (intelligent video and external 1 input) / 2 out (digital output and strobe)
14. Serial Port: RS-232 / RS-485
15. LAN Interface: 10 / 100 – Base – T
16. Network Protocol: HTTP, HTTPS, RTP/RTPS, Multicast, TCP/IP, ARP, ICMP, TELNET, FTP, SMTP
17. Viewer: IE6. CMS. QUICK Time, Media Player
18. Remote Admin: Web based Administration (Setup, Control, Upgrade)
19. Alarm Events: File upload via FTP, HTTP and email, notification via email, HTTP and TCP, external output activation, video recording to local storage
20. Dynamic IP: DDNS / UPNP support
21. Security: Password protection, IP address filtering, Http encryption, IEEE802.1X network access control, user access log
22. Power Supply: SMPS DC 12V and 24VAC , POE / option

If you are interesting this product, please contact us: nvp.tech@msa.hinet.net

Or you can visit our website: http://www.nvp.com.tw/

Machine Vision LED Light Source

Introduction:


1. Low Cost High Performance
2. 6500K Long Life High Power LED
3. Built-in Condencer Lens
4. Manual & Remote Function
5. Lamp Life more than 40,000 hours

Color: White


Power Supply: AC 100V ~240V

Power Consumption: 20W

Brightness Control: Manual & Remote (Analog Input DC 0~ + 5V)

Lux: 1,501,000

Color Temperature: 6,500K

Lamp Life: 40,000 hours

Cooling Fan: Cooling

Condition: -5℃ ~ + 40℃

Weight: 1.5Kg

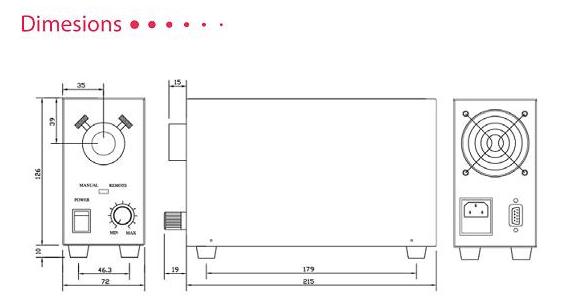

Dimension: 72 * 126 * 234 mm (W*H*L)
